In electronics manufacturing, size really does matter, just not in the way you might expect. The components we place every day on our SMT lines range from parts you can easily see, right down to chips you can lose under a fingernail.
Understanding SMT component sizes matters if you are designing a new board or moving a product to a new contract manufacturer. Package size drives placement accuracy, solder paste requirements, inspection strategy and ultimately the reliability of the finished assembly.
SMT component sizes are usually expressed as a four-digit code, such as 1206 or 0402. The code refers to the physical footprint of the part, measured in hundredths of an inch or, in the metric system, tenths of a millimetre.
So a 1206 resistor measures 0.12 inches by 0.06 inches, which works out at roughly 3.2mm by 1.6mm. As the numbers get smaller, so does the part.
At Key-Tech, our UK surface mount lines are set up to handle the full range, from large, easy-to-handle chips down to ultra-fine-pitch devices. Full details are on our Surface Mount SMT capability page.
Here is how the common SMT component sizes compare. The shrink between each step is larger than it looks on paper.
| Imperial Code | Size (mm) | Size (inches) | Everyday Scale |
| 1206 | 3.2 x 1.6 | 0.12 x 0.06 | About the size of a grain of rice |
| 0805 | 2.0 x 1.25 | 0.08 x 0.05 | Around the size of a sesame seed |
| 0603 | 1.6 x 0.8 | 0.06 x 0.03 | Smaller than a sesame seed |
| 0402 | 1.0 x 0.5 | 0.04 x 0.02 | About the size of a grain of sand |
| 0201 | 0.6 x 0.3 | 0.024 x 0.012 | Barely visible to the naked eye |
| 01005 | 0.4 x 0.2 | 0.016 x 0.008 | Smaller than a grain of pepper |

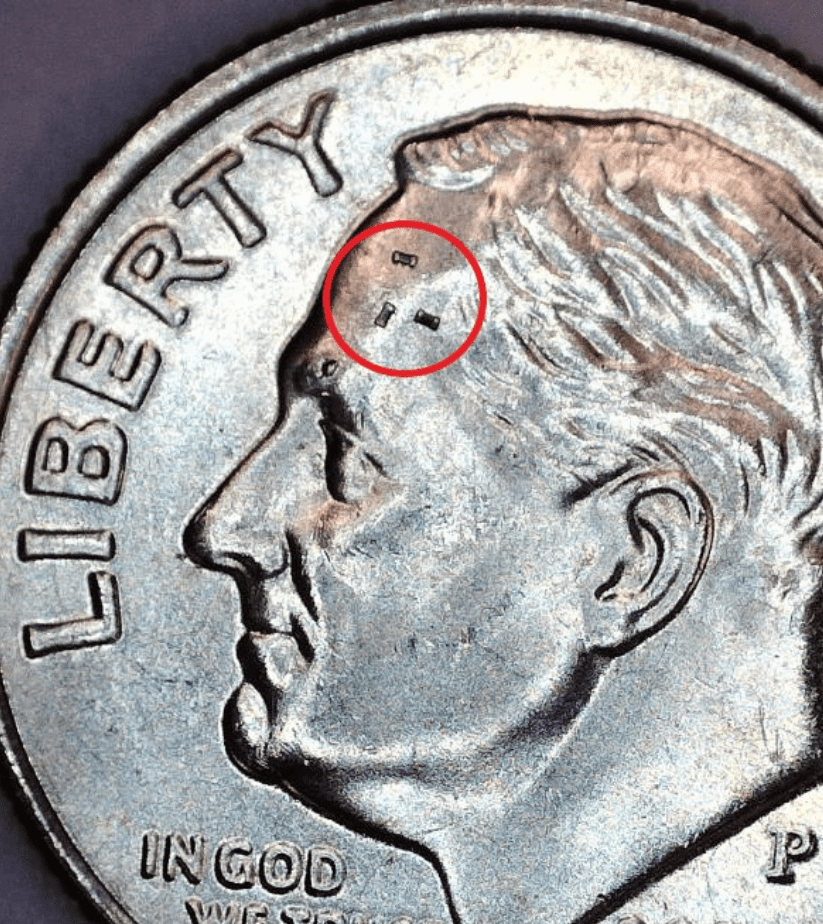

Numbers only tell you so much. A few real-world comparisons help to show the scale we are working at with the smallest surface mount components:
Parts this small are typically used in wearables, medical devices, high-density telecoms hardware and space-constrained defence and aerospace electronics, anywhere the design simply cannot afford the board real estate for anything larger.
Miniaturisation is not shrinking for its own sake. Smaller SMT component sizes unlock real engineering benefits:
The trade-off is that every step down in size puts more pressure on the assembly process. Tolerances tighten, paste volumes shrink and inspection gets harder. That is where having the right SMT equipment, and the right people behind it, starts to matter.
Placing an 01005 component is not a simple scaled-down version of placing a 1206. It needs a process built around precision from end to end.
Paste deposits for the smallest SMT component sizes are tiny. Stencil design, aperture geometry and print pressure all have to be right, and solder paste inspection (SPI) picks up any deposits that are out of specification before placement.
Our SMT placement machines use high-resolution vision systems to centre every part on the pad, correcting for tape tolerance and feeder variation on the fly. That is what allows consistent placement of 0201 and 01005 parts at production speed.
Lead-free reflow profiles are tight at the best of times. With ultra-small components, a well-profiled oven run under nitrogen makes the difference between strong, shiny joints and problems like tombstoning or voiding.
Automated optical inspection checks every board post-placement and post-reflow, and X-ray inspection verifies hidden joints on BGAs and other area-array packages. Full details of our inspection and test capabilities are on the [INTERNAL LINK: “inspection and test” → /key-capabilities/] page.
Handling the full spread of SMT component sizes is not just a technical boast. It is what lets us support customers in sectors where product density and reliability are non-negotiable:
Whether your design calls for chunky 1206 passives or the tiniest chips on the market, our UK SMT lines can handle it with micron-level accuracy. If you would like a considered response on a specific board or bill of materials, Contact Us and we will take it from there.
